Ground station for FPV SKY TERRA 1

Ground signal relay stations SkyCraft are designed to provide a stable control and video transmission channel over long distances when standard FPV systems do not provide the required range or suffer from interference. These stations act as an intermediate signal transmission point between the operator and the drone, allowing communication to be maintained in difficult terrain, under the threat of electronic warfare, or during flights where greater range is required than can be provided by the onboard VTX. They are used in strike FPV complexes, reconnaissance drones, and special systems where channel stability and low latency are critical.

Key design features and engineering capabilities

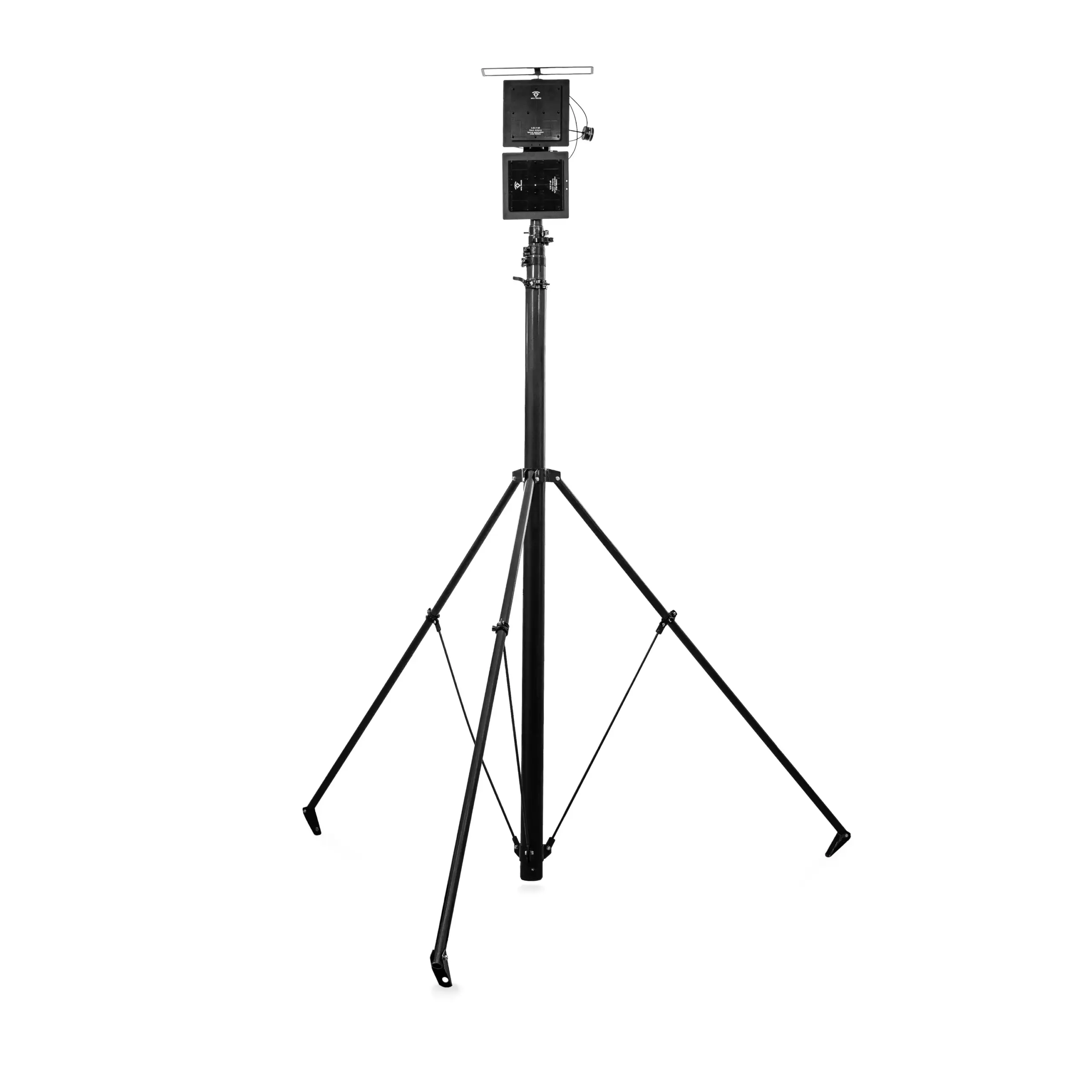

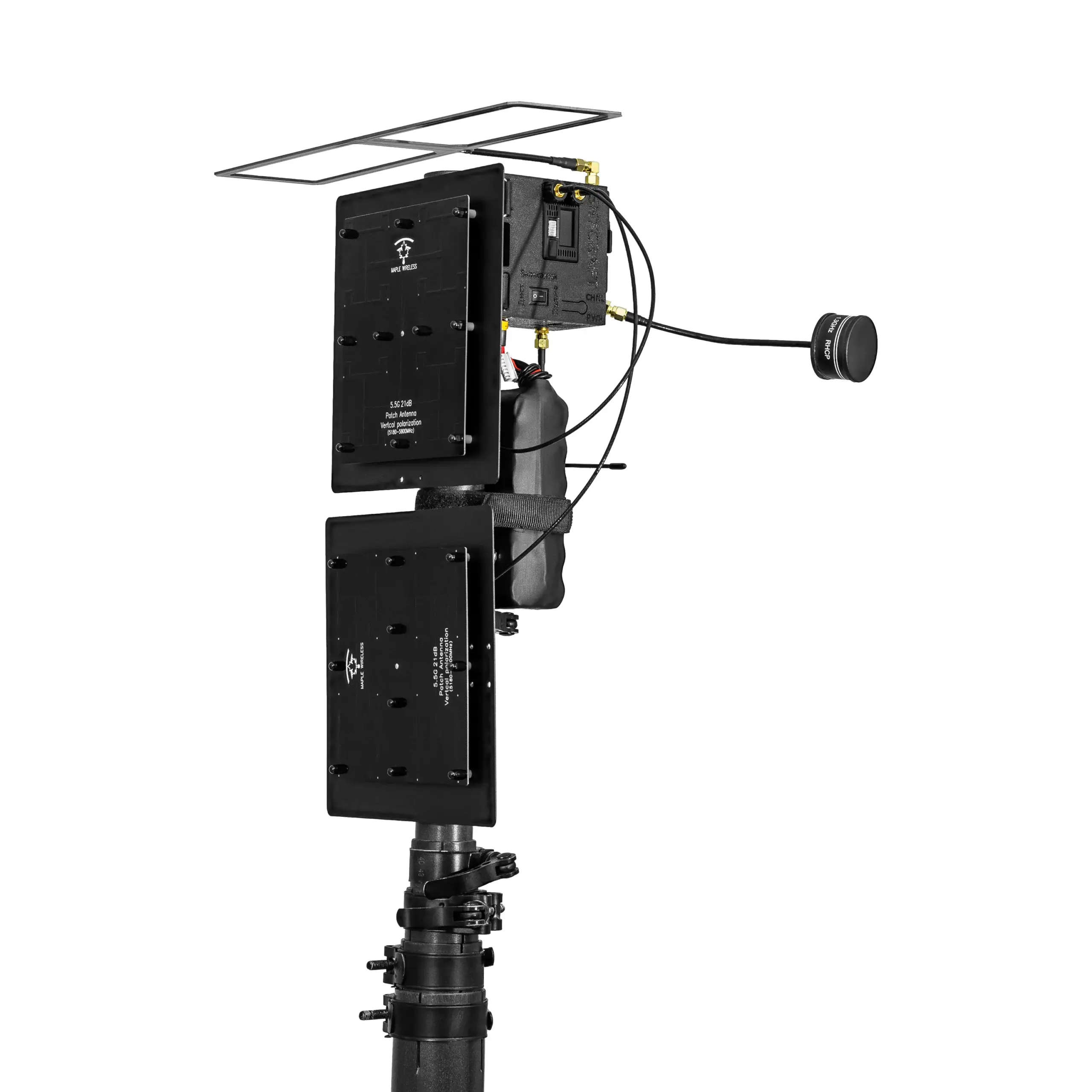

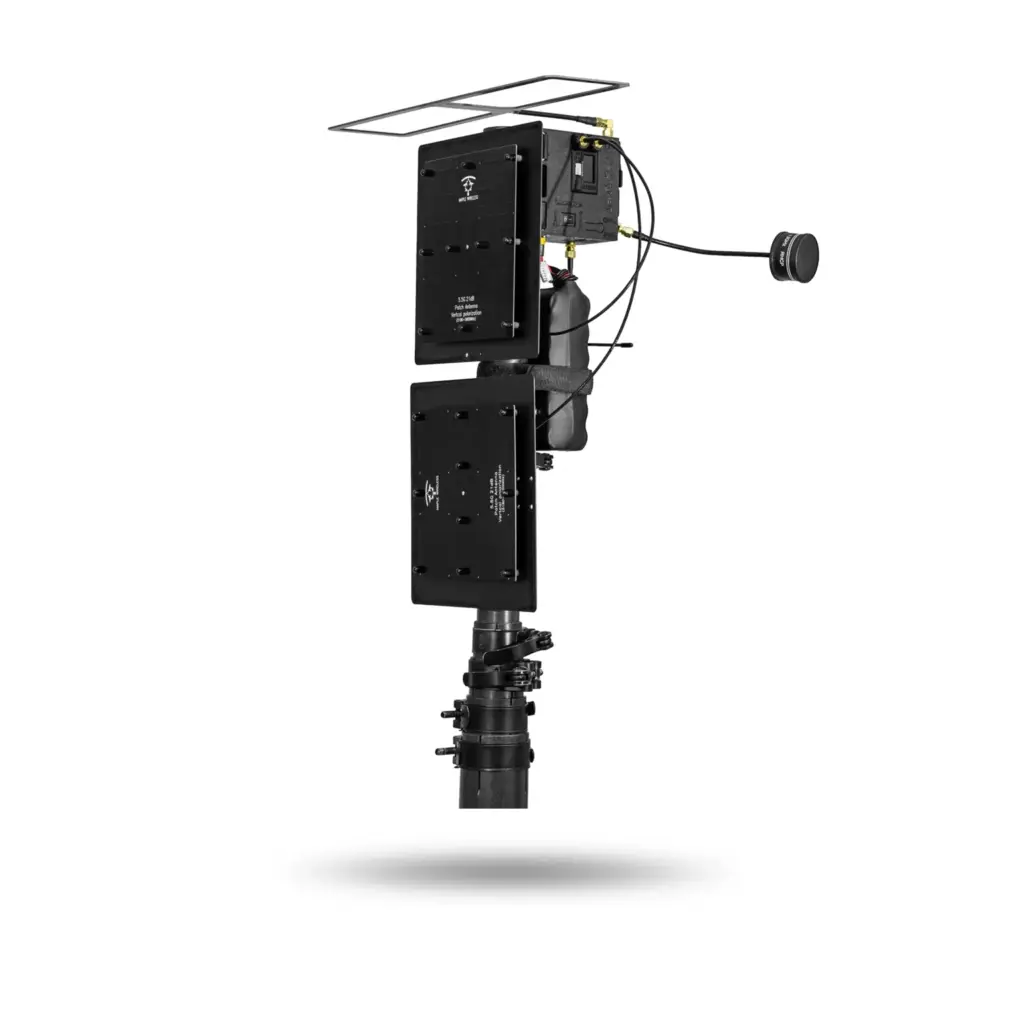

Stations SkyCraft support operation in wide frequency ranges – from 1.3 GHz to 5.8 GHz, depending on the model, allowing the system to be adapted to the specific environment and requirements of the operational area. All models have a printed protected housing and can be equipped with masts from 1 to 12 meters, allowing you to set the optimal installation height for signal amplification. Antenna systems are also selected individually: Helix, panel Patch antennas with amplification up to 21 dBi, or combined solutions to ensure range and stability.

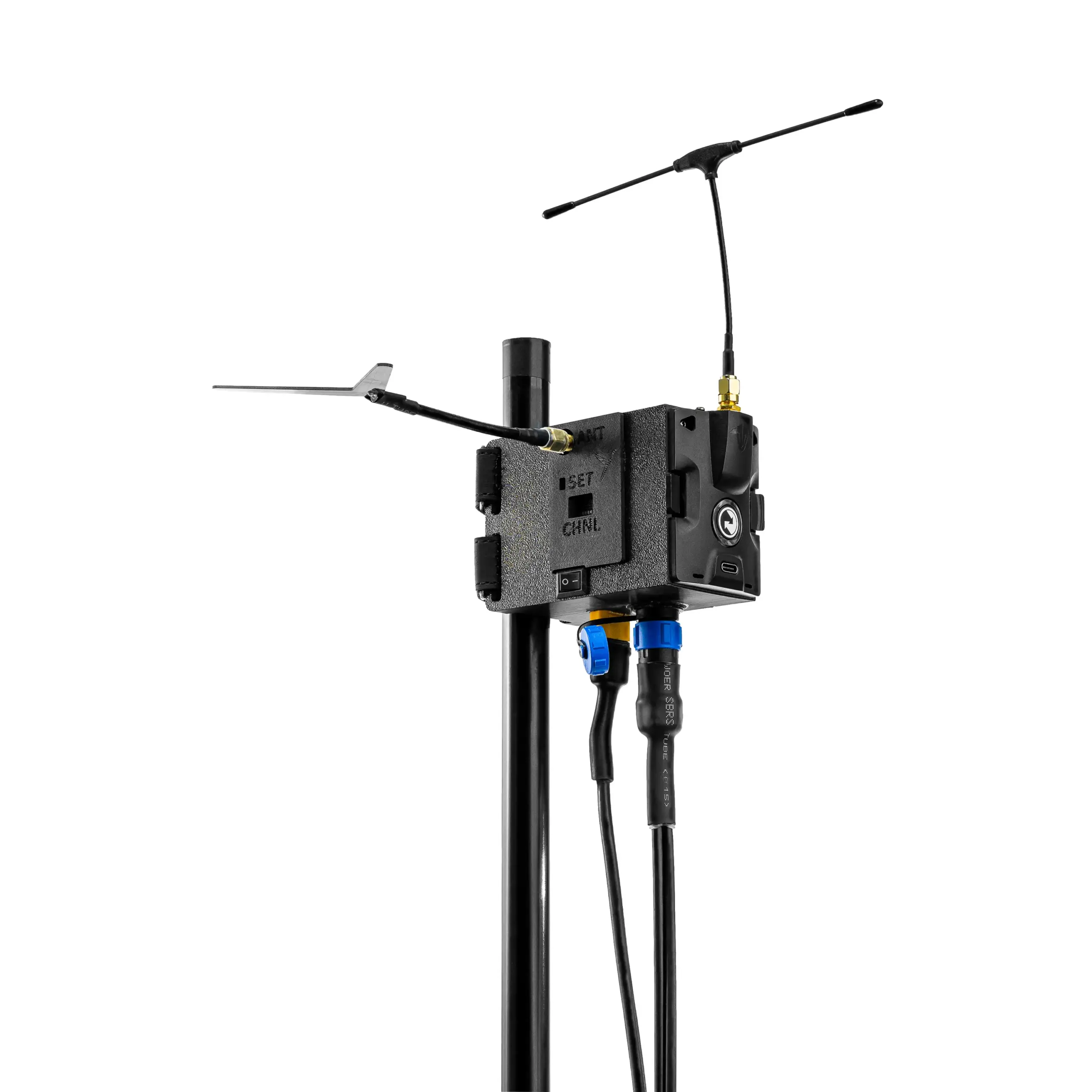

The video receiver and transmitter are configured according to the unit’s tasks – options are available on SteadyView X, Foxeer Wildfire, TBS Fusion, or specialized receivers at 1.2 or 3.3 GHz. The VTX is also customizable: power up to 1 W, operating frequencies, number of channels, and modulation mode. All stations support Narrow-Band Filter, which improves reception quality in noisy airwaves.

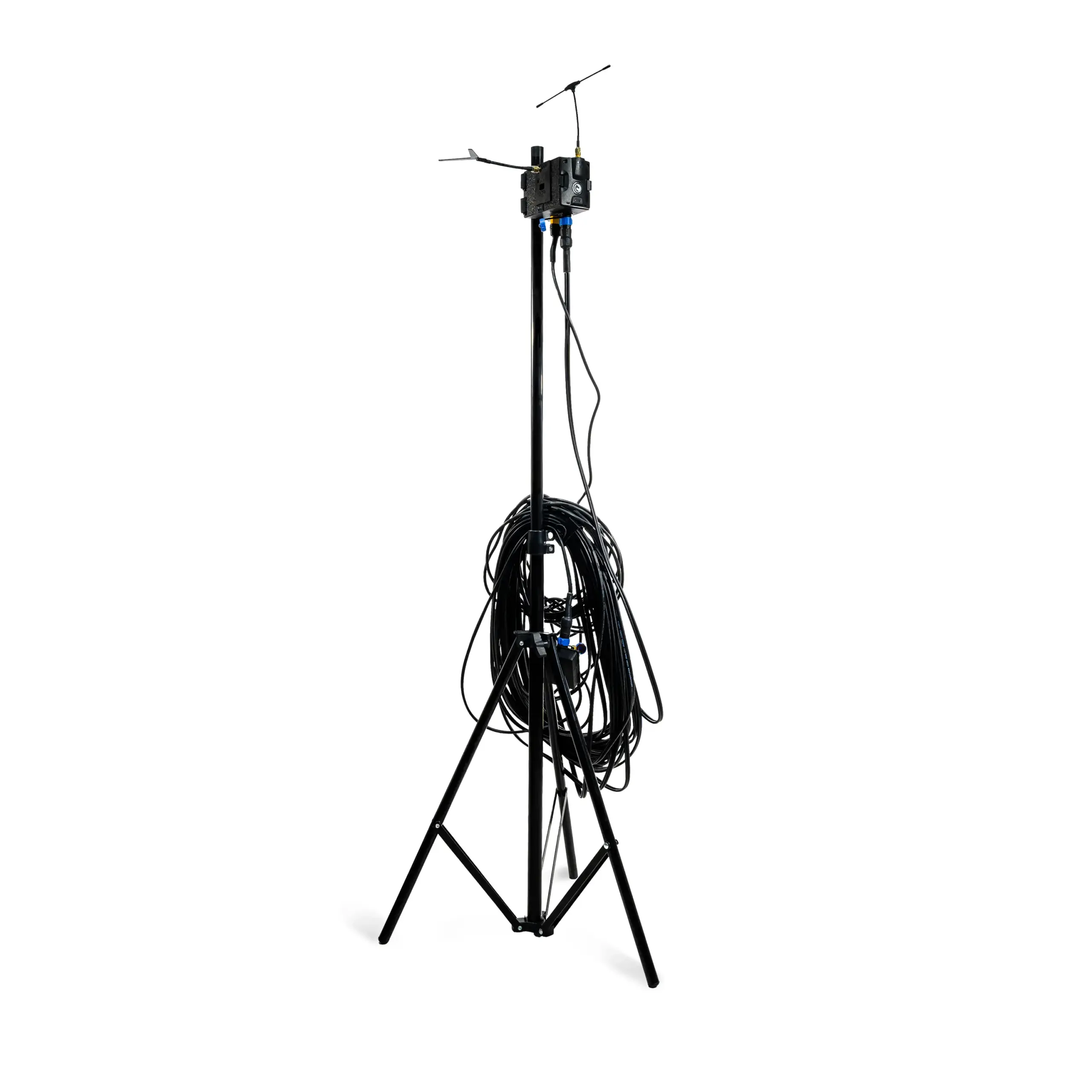

Power is supplied from the 2S–6S range, and cable kits can include Dialan 3C2V video coaxial and power cables with quick-release connectors for rapid deployment. This makes the stations suitable for field conditions and long missions.

Advantages and customization for any application scenario

Each station SkyCraft  has its own specialization: more versatile solutions with support for multiple frequency bands, models with an emphasis on maximum range at 5.8 GHz, or versions with extended receiver compatibility. This lineup allows you to choose a station for specific tasks — from mobile use with short masts to stationary deployment with high signal amplification.

Customization is a key advantage: the customer can choose frequencies, antennas, video receiver type, VTX power, enclosure type, mast height, and cable kit configuration. This makes it possible to adapt the complex as precisely as possible to the conditions of a specific unit or mission, resulting in a station that works “for the task” rather than universally and compromisingly.

SkyCraft accepts wholesale requests for all variants of ground relay stations and provides assembly in the required configuration in accordance with technical requirements.
