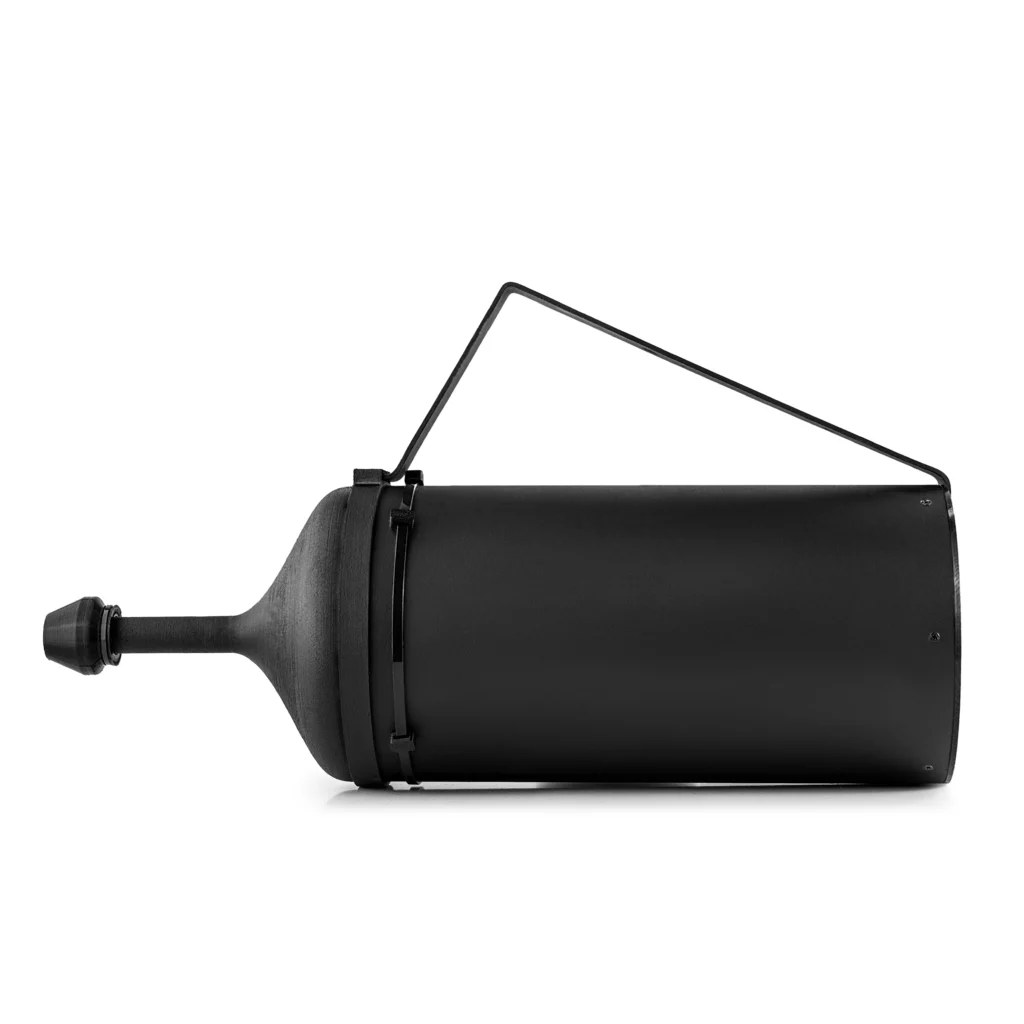

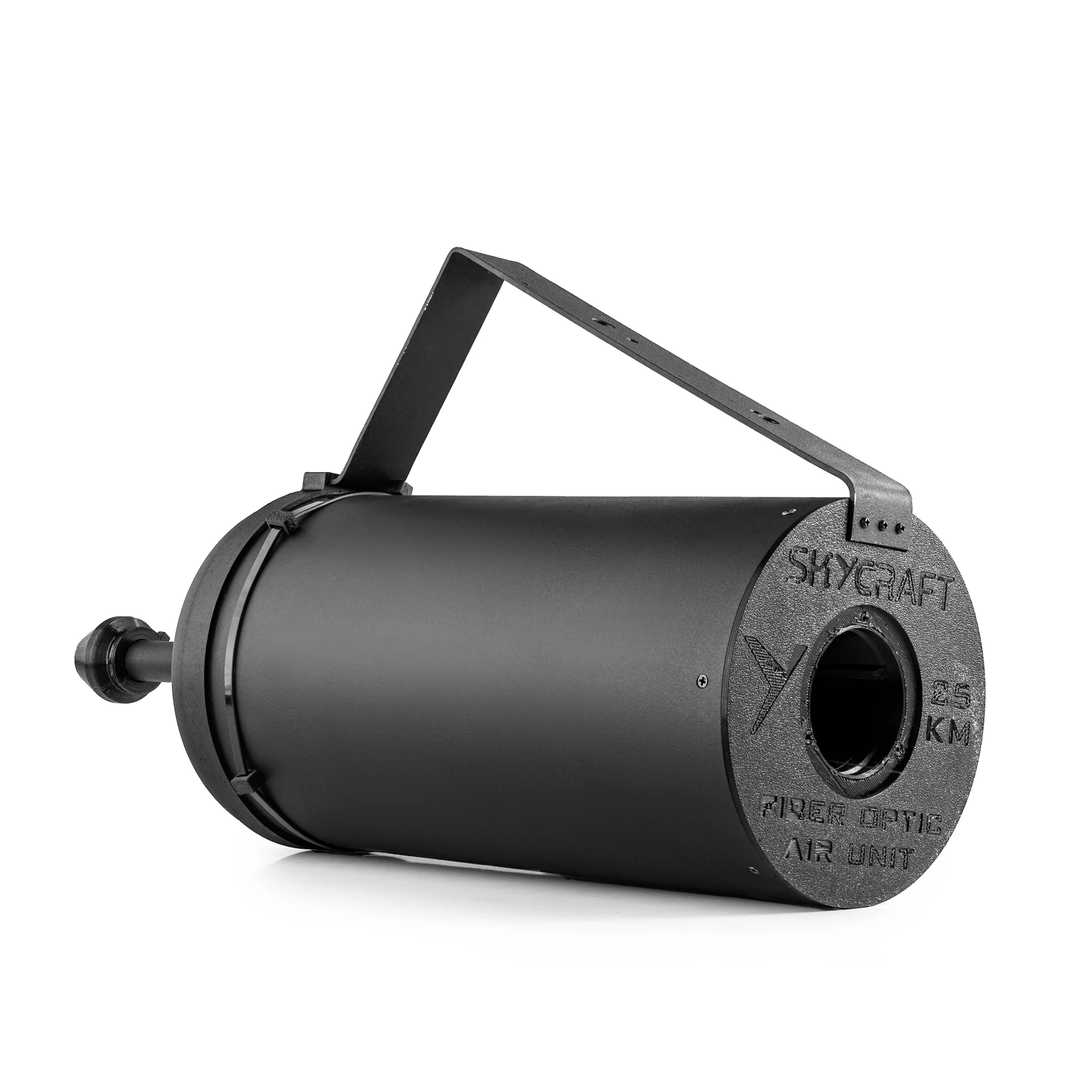

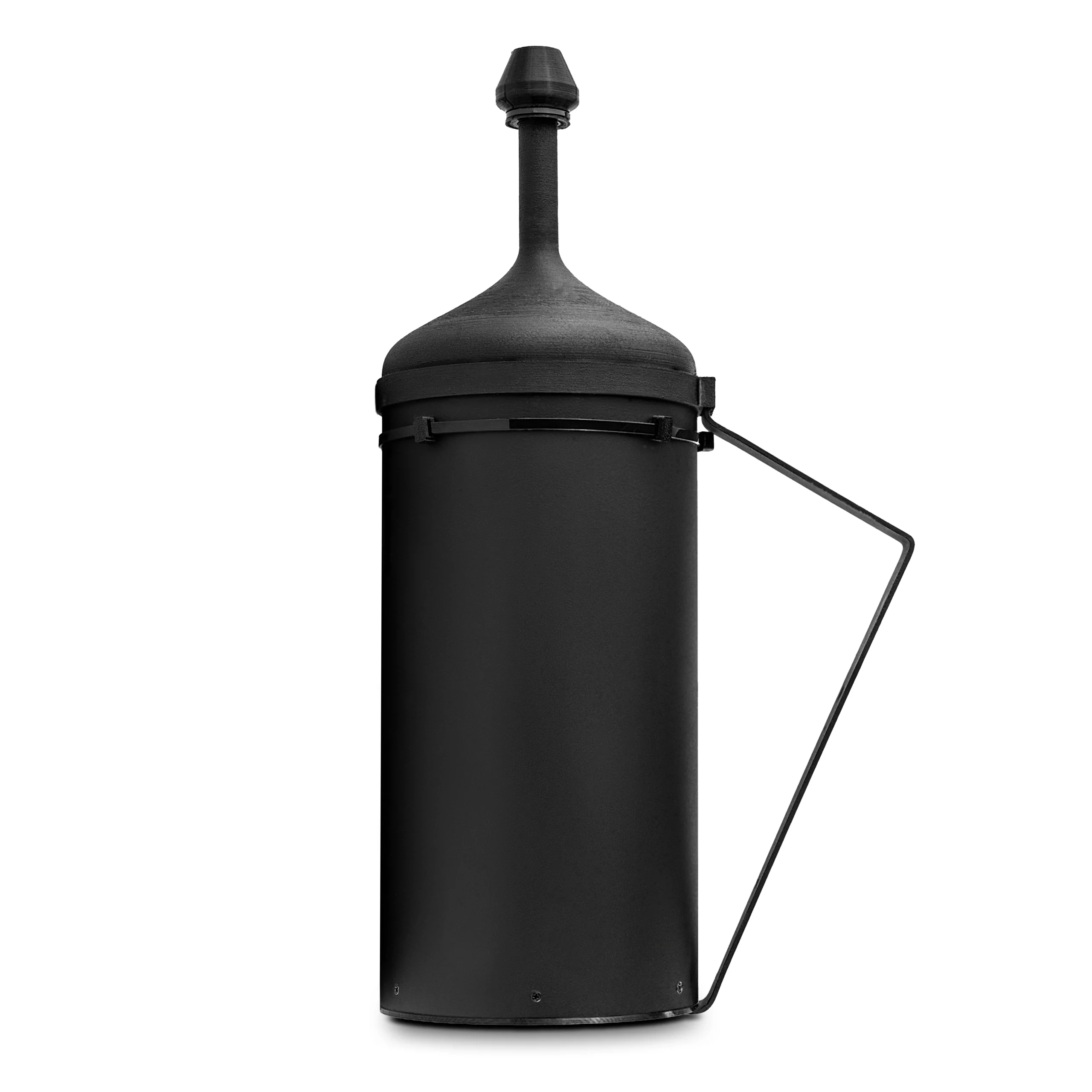

FPV Fiber Optic Module
A professional-grade solution for analog video and TTL control signal transmission over distances of 25 km and more. The implementation of optical fiber ensures a stable link and absolute immunity to Electronic Warfare (EW) interference, where traditional radio channels lose efficiency or compromise operator safety.
Technical specifications
Maximum Range
25 km and more
Power Input
DC 5.5–26V (2S–6S LiPo support)
Power Consumption
up to 0.4W
Communication Interface
MX-SH1.0mm-6P, AV port
Fiber Optic Connector
FC (threaded connection)
Module Dimensions
50 × 29 × 13 mm
Wavelength (Air / Ground)
1310 нм / 1550 mm
LED Indicators
Power, Fiber Link, Video Signal, and Data
Specifications
Why choose FPV Fiber Optic Module
The fiber optic module is a key component of systems where radio communication is impossible or compromises the operator’s position.
- Absolute EW Immunity: Since the signal is transmitted via light pulses within the fiber, the module cannot be “jammed” by standard electronic interference.
- Dual-Wavelength Communication (WDM): Utilizing different wavelengths (1310 nm for Air and 1550 nm for Ground) allows for simultaneous data transmission and reception over a single cable.
- TTL (CRSF) Support: The module is fully compatible with flight controller communication protocols, ensuring crisp and responsive drone control.
- Visual Monitoring: Integrated LED indicators (Power, Fiber Link, Video, Data) allow for a quick system status check before deployment.
Connection Specification
Air Module:
- RX: Connection to CRSFTX (flight control).
- TX: Connection to CRSFRX (telemetry/feedback).
- AV: Analog video signal input.
Ground Module:
- RX: CRSFTX reception from the remote controller.
- TX: CRSFRX transmission to the control station.
- AV: Output to a display, goggles, or repeater.
Warning: Module power input must not exceed 26V. Overvoltage may result in permanent device failure.
