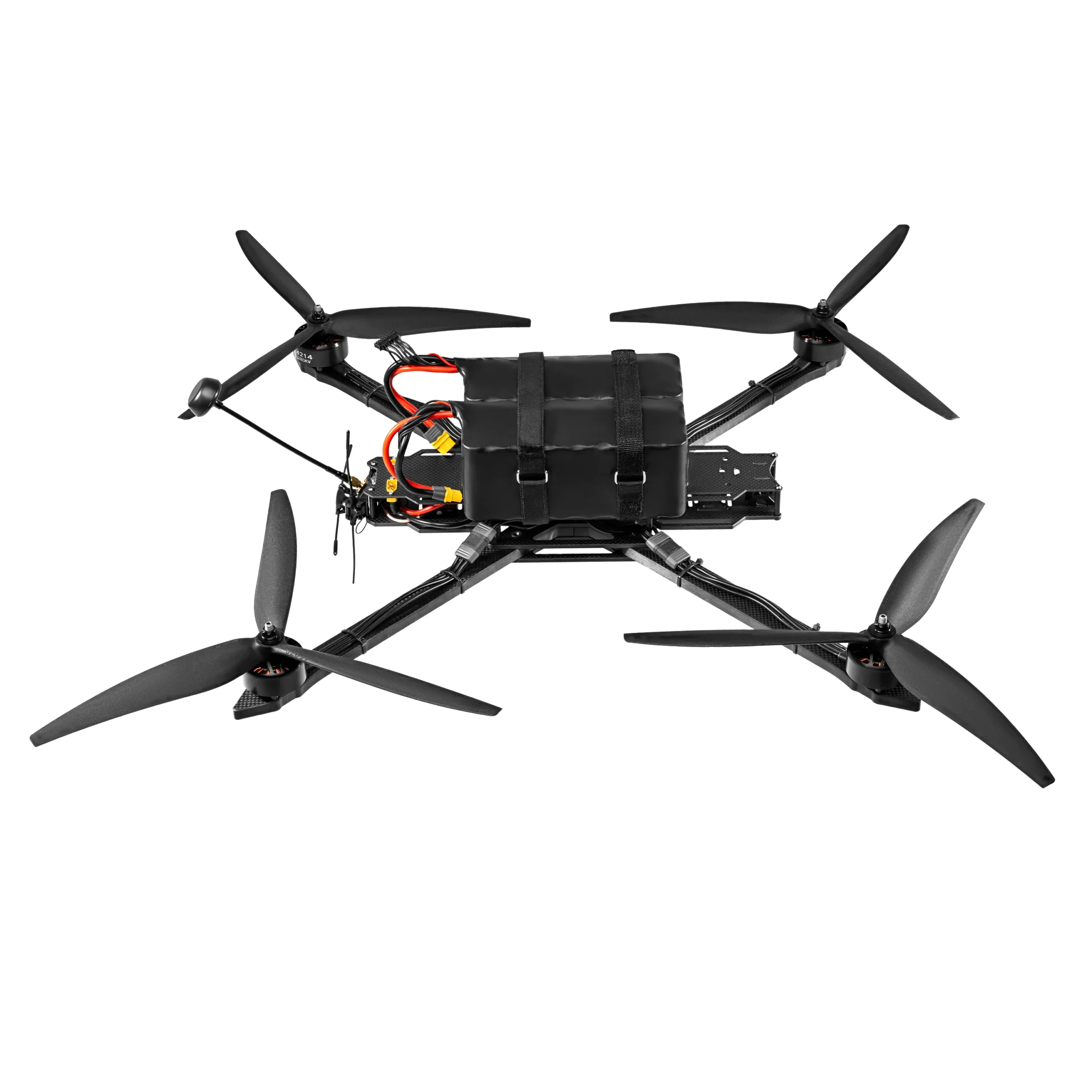

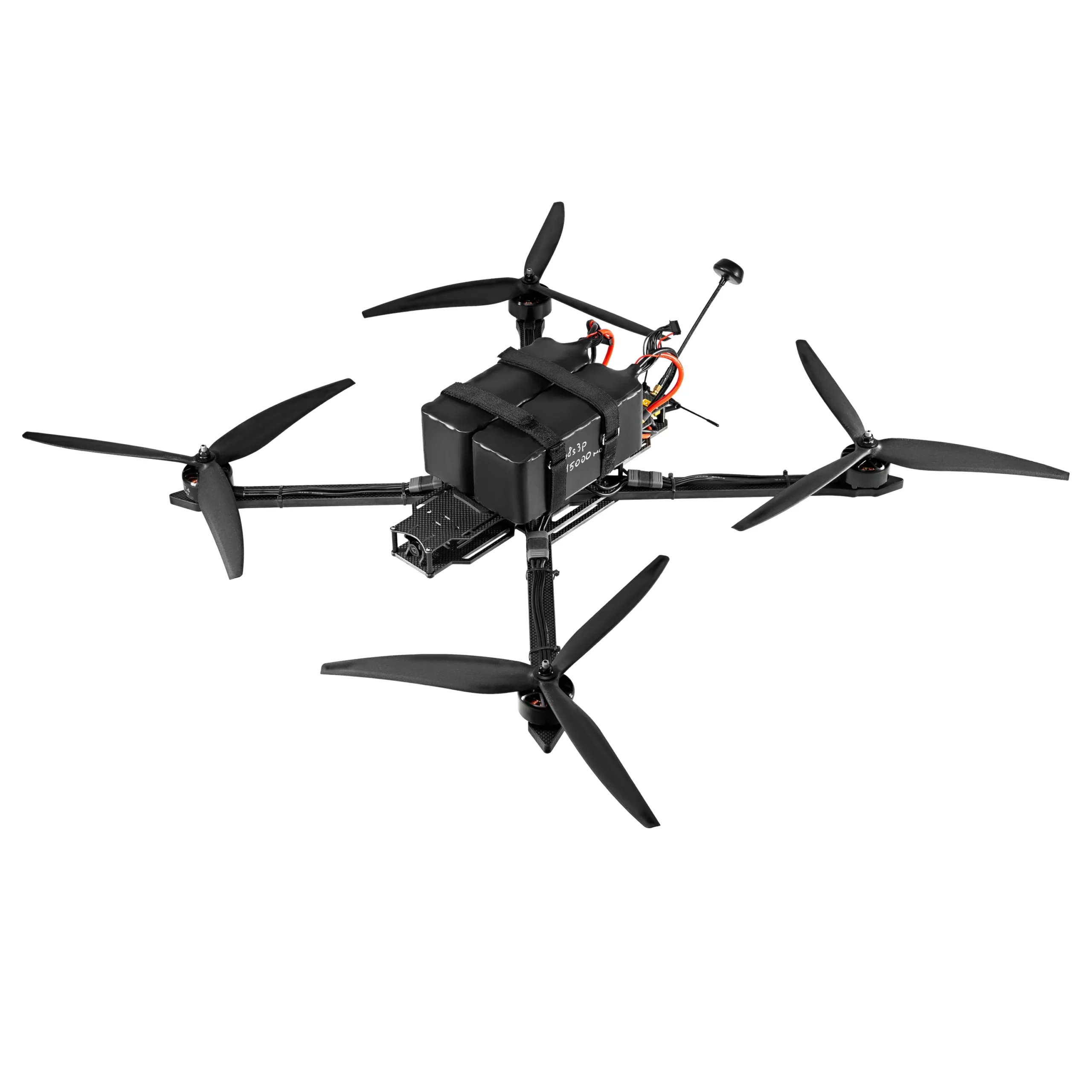

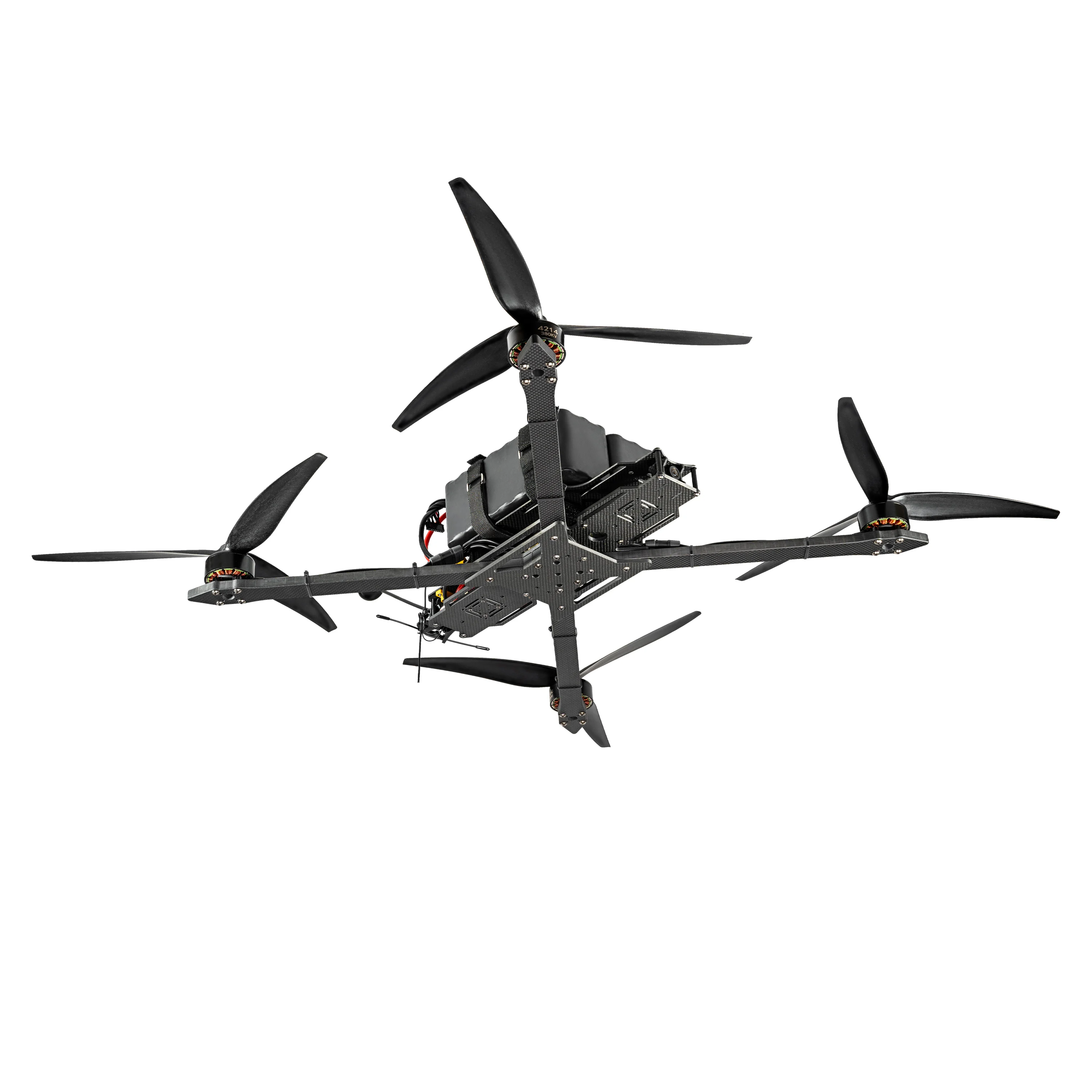

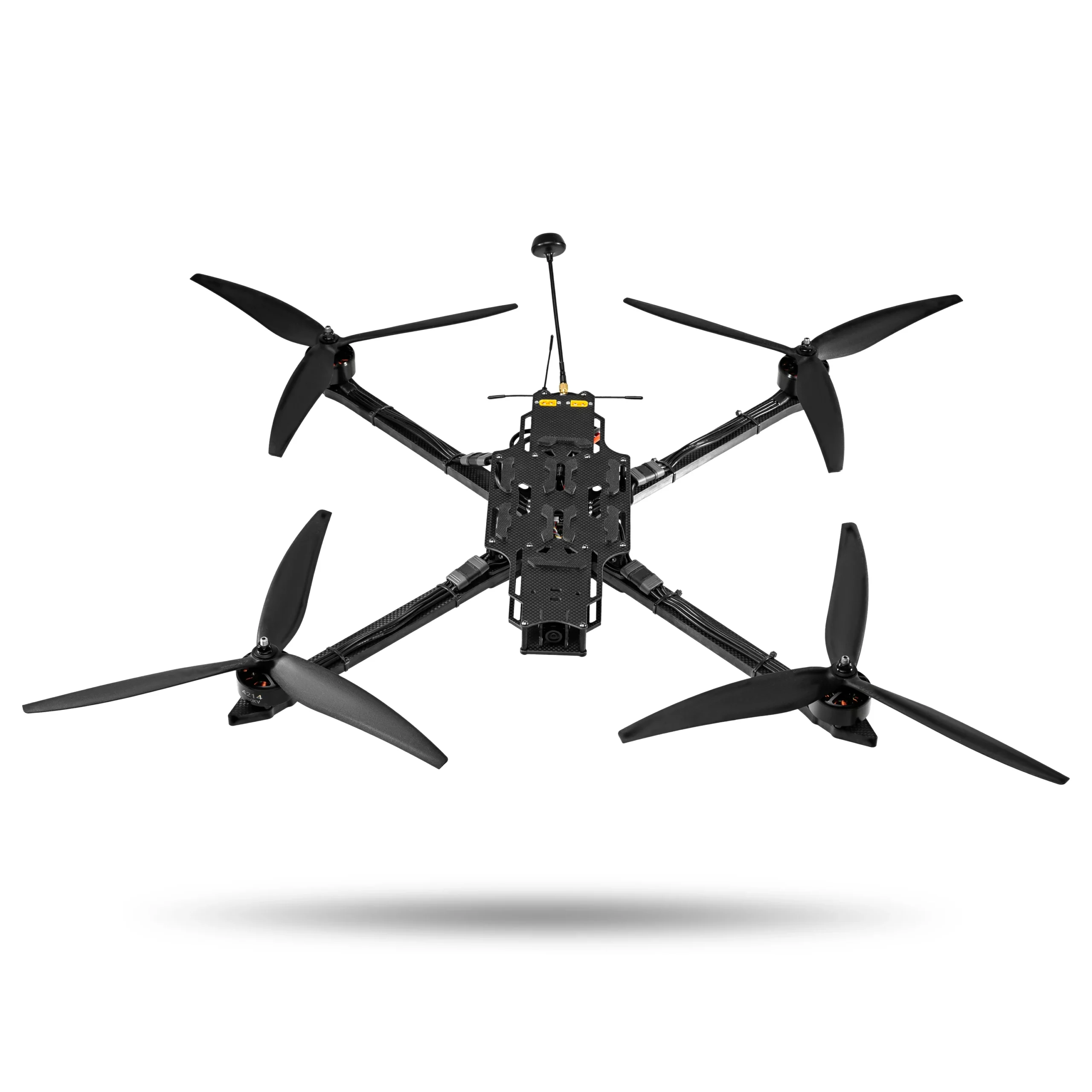

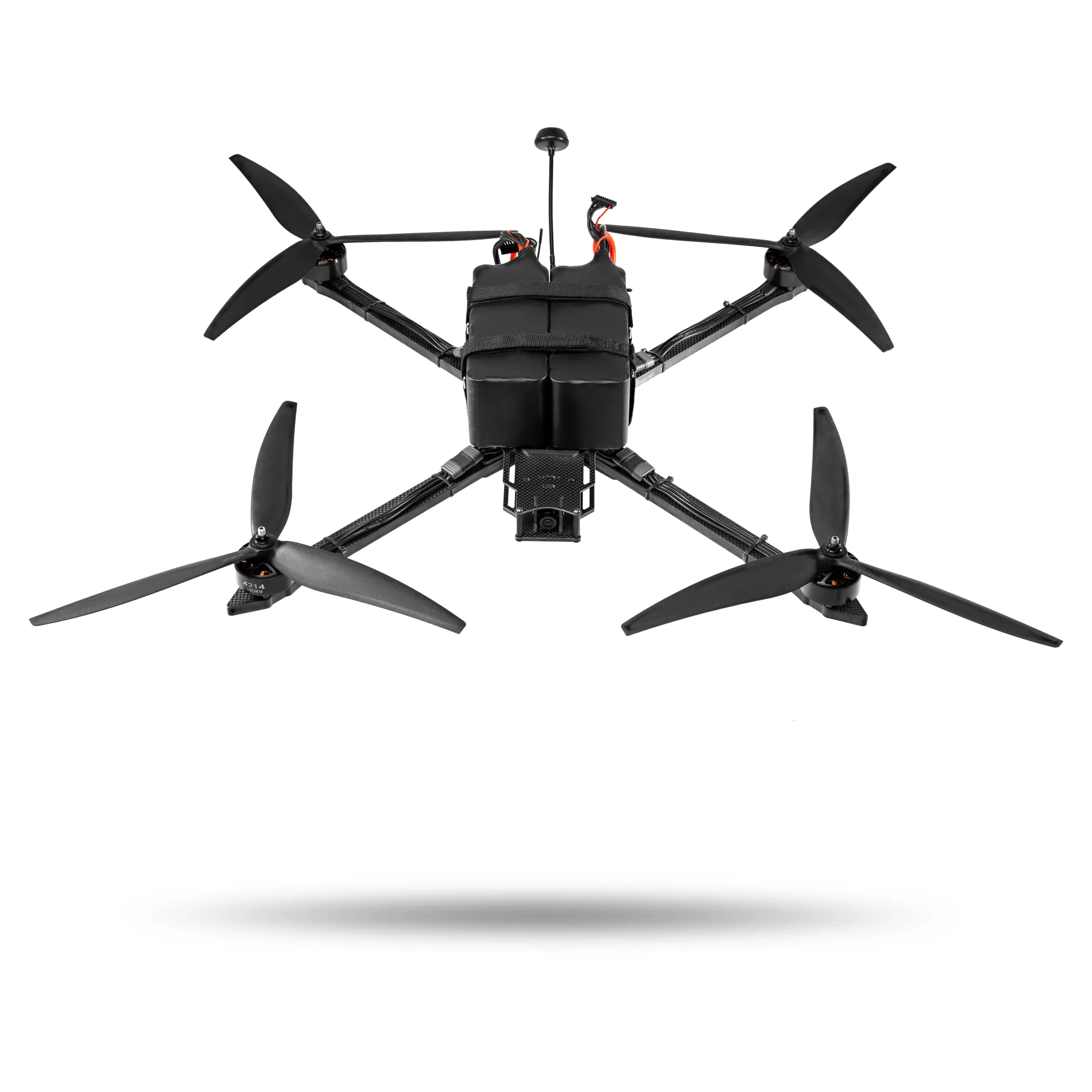

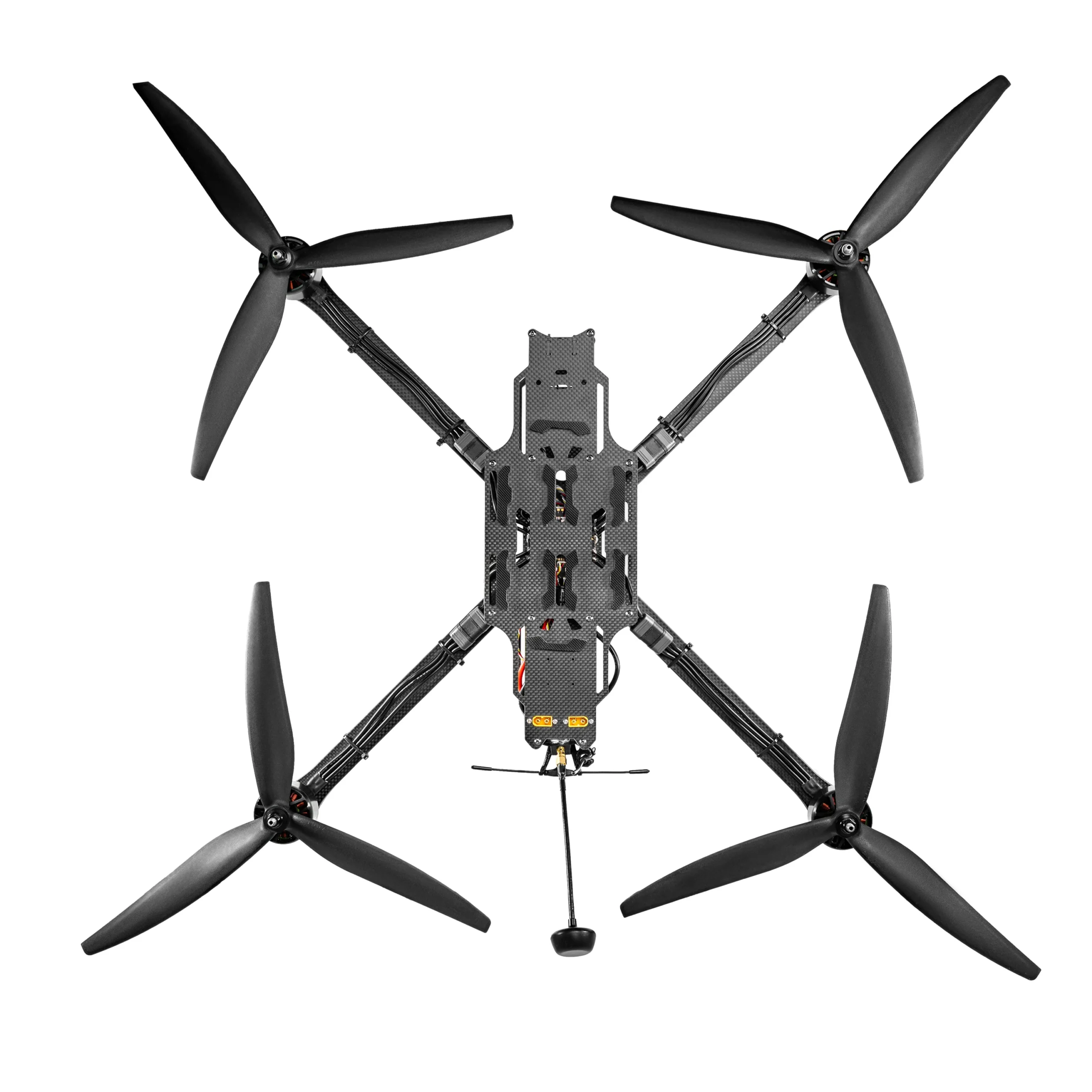

SKYCRAFT RDM-15
SKYCRAFT RMD-15 is a flagship 15-inch strike platform designed to deliver relatively heavy combat payloads over long distances. With a payload capacity of up to 7.2 kg and integrated electronic warfare (EW) countermeasure systems, this drone serves as a powerful tool for destroying heavy armored vehicles, fortified positions, and enemy ammunition depots deep in the rear area.
Technical specifications
Payload capacity
Up to 7.2 kg
Operational radius / range
Up to 25 km
Flight endurance
Up to 28 minutes (depending on battery configuration and payload)
Maximum speed
Up to 80 km/h
Cruise speed
60 km/h
Flight controller
F722 class (SoloGood F722 or compatible)
Specifications
Technical parameters
| Name of characteristic | Value |
|---|---|
| Frame design and size | 15-inch, reinforced carbon fiber, X-shaped geometry |
| Overall dimensions | 512 mm (wheelbase) / 836 mm (with propellers) |
| Weight specifications | Dry weight: 2.2 kg / Maximum takeoff weight: 9.4 kg |
| Payload capacity | Up to 7.2 kg (optimal for relay payloads and batteries) |
| Speed modes | Cruise: 60 km/h / Maximum: 80 km/h |
| Flight efficiency | Combat radius: 25 km / Endurance: up to 28 minutes |
| Power system | 4 brushless motors rated at 2.3 kW each |
| Propellers | 15-inch, high-strength |
| Flight controller | Modern F722-class stack (SoloGood or equivalent) |
| Control system | ExpressLRS (ELRS), operating frequency 433 MHz |
| Video link characteristics | Analog type, supported bands 1200–5800 MHz |
| Optical system | Analog camera (1800 TVL) with light sensitivity of 0.00001 lux |
| Power supply parameters | Li-Ion / Li-Po batteries (33.6 V configuration); capacity 20–30 Ah |
| Telemetry (OSD) | Altitude, voltage, current, heading, speed, RSSI, link quality (LQ) |
| Operational limits | Temperature: −20 to +40 °C; wind resistance: up to 7 m/s |
Why choose SKYCRAFT RDM-15
RMD-15 is the “heavy artillery” of the FPV drone world. This model is specifically designed to perform missions beyond the capabilities of standard 7-inch or 10-inch platforms. Its primary role is the precision engagement of highly protected targets at distances of up to 25 km.
The platform addresses the following mission profiles:
- Heavy payload operations: Delivery and release (or kamikaze strike) of munitions weighing up to 7.2 kg, enabling the neutralization of tanks, self-propelled artillery systems, and reinforced concrete bunkers.
- Deep penetration: Thanks to its powerful energy system, the drone is capable of operating deep in enemy rear areas, bypassing the first line of defense.
- Challenging EW environments: The model is adapted for flights in areas with a high level of interference, allowing units to complete missions even under active enemy electronic warfare pressure.
Key design features and engineering solutions
The RMD-15 design is based on the principles of maximum structural rigidity and excess thrust. Every component is engineered to withstand extreme loads:
- Reinforced carbon frame: The use of thick-wall carbon fiber and specialized bracing minimizes frame deformation under full load, ensuring precise control even in windy conditions.
- High-performance powertrain: A motor set rated at 2.3 kW per motor provides sufficient thrust reserve for safe takeoff and maneuvering at maximum takeoff weight.
- Night-capable optics: The drone is equipped with an ultra-low-light camera (0.00001 lux), making it an effective tool for night operations.
- Protected communications: A flexible configuration of control frequencies (starting from 433 MHz) and video links allows operators to select an RF “window” where enemy EW systems are least effective.
Advantages of the model compared to other solutions
RMD-15 delivers capabilities approaching those of professional military systems, while retaining the simplicity and cost-efficiency of an FPV solution:
- Payload capacity: While competitors are limited to 3–5 kg, the RMD-15 confidently operates with payloads exceeding 7 kg, fundamentally changing the impact profile.
- Autonomy and speed: Even under load, the drone maintains a high cruise speed (60 km/h), reducing time spent in high-risk zones.
- Out-of-the-box readiness: The model is delivered fully configured to SkyCraft standards—with validated firmware and calibrated stabilization systems—eliminating the need for additional field tuning at the unit level.
- Wind resistance: The large 15-inch propellers and substantial takeoff mass provide stability in wind conditions of 6–8 m/s, where lighter platforms lose control.
