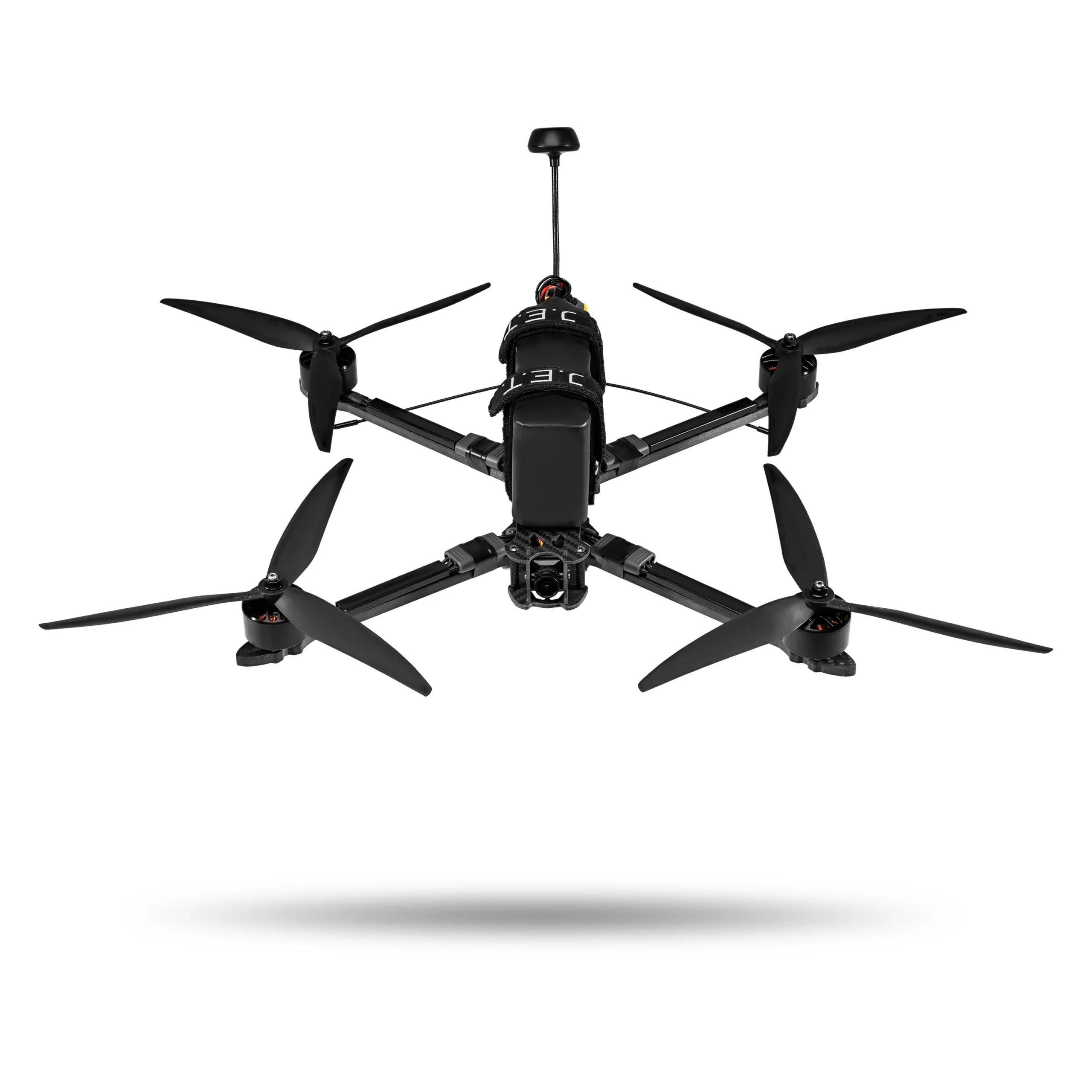

SkyCraft RMD 10 – 10” FPV drone kamikaze
SKYCRAFT RMD 10″ is a strike FPV-drone designed to perform tasks at distances of up to 20 km with a combat load of up to 3 kg. The model provides stable target acquisition, accurate strikes, and confident control at low altitudes, even in difficult conditions. It is a ready-made platform for assault and reconnaissance-strike missions where range, accuracy, and payload capacity are important.
Technical specifications
Payload capacity
3,000 g
Flight time (with / without payload)
Up to 18 min / up to 35 min
Operational range
Up to 25 km
Wind resistance
6–8 m/s
Maximum speed
115 km/h
Cruising speed
50 km/h
Control frequencies
433 MHz
Video transmission frequencies
4.9–5.8 GHz / 3.3–1.2 GHz
Maximum flight altitude
Up to 1 km
Deployment time
2 min
Features
Clear and stable video feed
The professional CADDX analog camera with 1800 TVL resolution provides clear visual performance even at dusk or during flights in shaded areas. This significantly reduces the risk of targeting errors and is critical for precise target approach, detection of equipment in covered positions, and safe low-altitude maneuvering.
Stable data transmission
The combination of a high-power VTX module operating in the 4.9–5.8 GHz band with relay support ensures reliable drone control in areas (up to 20 km) beyond the effective range of standard FPV systems. *To prevent signal loss, the use of a ground-based relay station or an airborne relay platform is recommended.
Increased payload capacity
High-torque 3115 900KV motors deliver reliable thrust even at full payloads of up to 3 kg, significantly expanding the drone’s operational capabilities compared to standard FPV platforms, without compromising cruise speed.
Extended operational range
A high cruising speed (50+ km/h) combined with an extended flight range (18–20 km) ensures stable performance and consistent flight dynamics even under full payload conditions.
Specifications
Technical parameters
| Name of characteristic | Value |
|---|---|
| Operational mission range | Up to 20 km (depending on weather conditions) |
| Maximum flight time with payload | Up to 13–18 min (depending on battery) |
| Maximum flight time without payload | Up to 35 min |
| Maximum flight altitude | Up to 1 km |
| Maximum allowable wind speed | Up to 7 m/s |
| UAV weight with packaging | 1,300 g |
| UAV weight without packaging | 865 g |
| UAV weight with packaging and battery | 2,200 / 2,630 g (depending on battery type and capacity) |
| UAV weight without packaging, with battery | 2,100 / 2,530 g (depending on battery type and capacity) |
| Guidance system | Remote visual guidance |
| Operating / cruising speed | 50–60 km/h |
| Maximum speed | 115 km/h |
| Deployment time | 2 min |
| Propulsion system | Brushless electric motors |
| Control frequency (ExpressLRS) | 433 MHz |
| Analog video frequency | 4.9–5.8 GHz |
| Control system | ELRS or TBS |
| Box dimensions (without battery) | 400 × 350 × 100 mm |
| Control radio link range | Up to 25 km (depending on radio environment conditions) |
| Payload capacity | 3,000 g |
| Battery capacity | 8,400–12,600 mAh |
| Battery type | Molicel P42A 6S2P / 6S3P |
| Frame | Mark4 v2 10-inch |
| Camera | Caddx (analog), 1800 TVL |
| Video transmitter (VTX) | VTX 4.9–5.8G 3W |
| Motors | 3115 900KV |
| Electronic speed controller (ESC) | SoloGood60A-4IN1 |
| Flight controller (FC) | SoloGood F722 |
| Receiver | BetaFPV 433 MHz |
| Antenna frequency | 433 MHz |
| Antenna type | RHCP |
| Propellers | Gemfan 1050-3 |
| Note | Specifications are provided with payload installed |
Why choose SkyCraft RMD 10 – 10” FPV drone kamikaze
SKYCRAFT RMD 10″ – a powerful 10-inch FPV drone for missions where combined range, payload capacity, and maneuverability are important. This military drone is designed for assault, reconnaissance, strike, and specialized units that need to operate confidently at distances of up to 20 km with a payload of up to 3 kg. The RMD 10″ covers point strike tasks, detection of equipment in shelters, fire correction, and delivery of equipment to the enemy’s rear, maintaining controllability and a stable image even at low altitudes and in twilight.
Key design features and engineering solutions
The professional CADDX analog camera with a resolution of 1800 TVL provides detailed images in shadow areas and in low light, reducing the risk of error when targeting. A powerful 4.9–5.8 GHz VTX, in conjunction with ground or air repeaters, maintains a stable signal and drone control at an operational distance of up to 20 km, even in noisy radio conditions. The 3115 900KV motors provide sufficient thrust to carry loads of up to 3 kg without a drop in speed, while the optimized aerodynamics and propeller selection maintain a cruising speed of 50+ km/h and provide a real flight range of up to 18–20 km.
Advantages of the model compared to other solutions
Compared to typical smaller FPV platforms, the SKYCRAFT RMD 10″ offers significantly greater payload capacity and operating range without compromising video stability and controllability. The combination of a CADDX 1800 TVL camera, powerful VTX, and relay solutions provides more reliable communication at combat distances than standard systems. Units receive a versatile tool: a single platform covers scenarios from reconnaissance and correction to strike missions and delivery of specialized payloads. The SKYCRAFT RMD 10″ is available for wholesale orders for Defense Forces units, volunteer foundations, and partner organizations.
